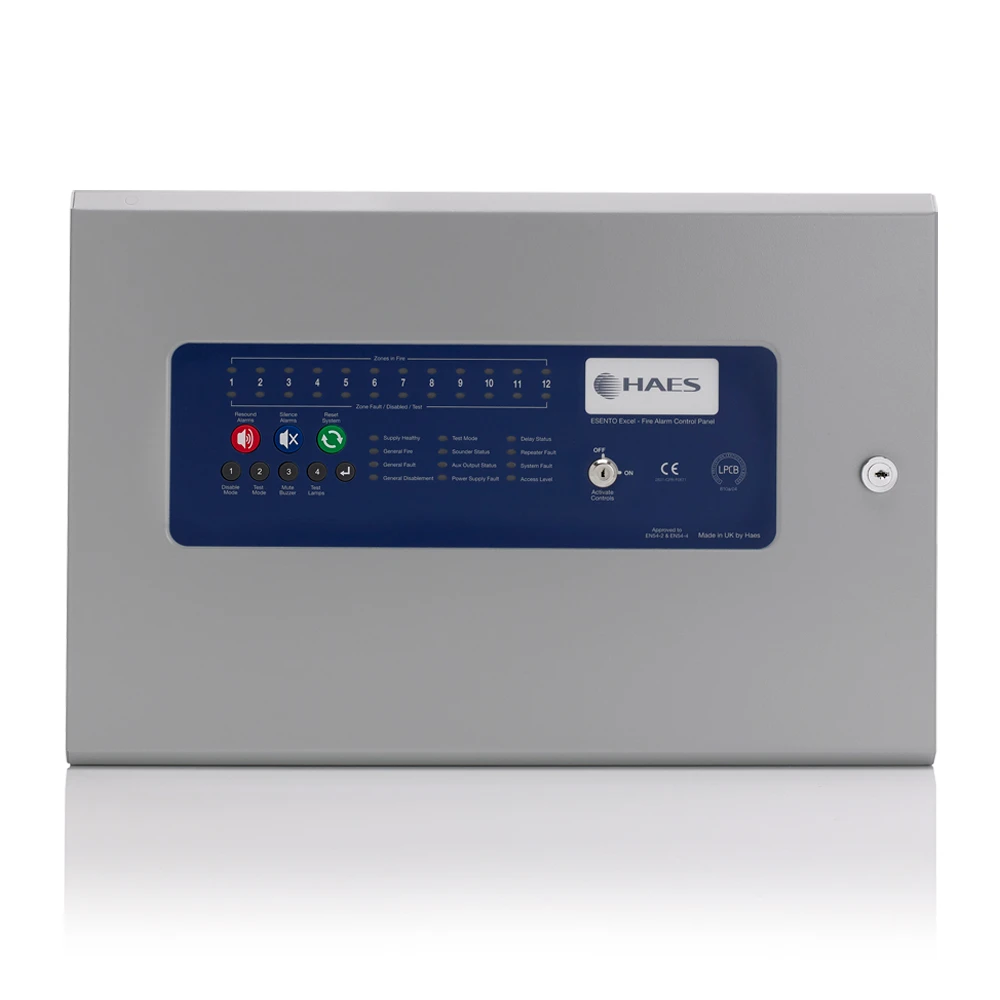

The Haes AlarmSense PLUS panels provide 4, 8 or 12 AlarmSense zones suitable for the Apollo AlarmSense 2 wire protocol devices. This panel comes in 4,8 or 12 AlarmSense zones and is approved to EN54-2 & 4. This panel is ideal for HMOs as it has false alarm reduction with non priority signalling and local and general alarm switching.

Quality, reliability, ease of use and feature rich are attributes that are consistent across the entire range of Haes fire alarm control panels. The AlarmSense PLUS encompasses all of these attributes to provide a panel that meets a variety of needs.

For the fire alarm engineer the AlarmSense PLUS has been designed to minimise labour costs. There is ample room for wiring, changing batteries and clear indication. Activation is via key switch or access code, which means you should always be able to work on the panel and the one man walk tests will help reduce the cost of maintaining the fire alarm system.

All inputs and outputs are fully programmable and there are options to have delays and coincidence attributes to the outputs.

As standard, all AlarmSense PLUS panels provide two additional conventional monitored sounder circuits, Fire & Fault VFCO relays, Fire & Fault switched negative outputs, class change and an alert input.

Haes AlarmSense PLUS panels are approved to European standards EN54-2 & 4, Fire Detection and Alarm Systems Control & Indicating Equipment.

• 4, 8, 12 AlarmSense zones

• Activate controls via keyswitch or code entry

• Soft tactile buttons for controls & programing

• Integral detector removal monitoring

• 3 Amp switch mode power supply Nom 27V DC

• 2 additional conventional monitored sounder outputs

• 2 Aux C/O relays (1 x Fire) (1 x Fault). voltage free

• Class change I/P

• Alert I/P

• Fire & fault switched -ve outputs

• Additional relays & switched -ve outputs available via expansion zone cards

• Program delays to ouputs

• Program coincidence alarms

• Test mode, with or without sounders

• Disable zones, sounder O/Ps, aux O/Ps & delays

• Alarm load, 2.4A shared between all sounder outputs
